Forsis EXPERT SBC, 17″ LCD TFT Industrie PC

FORSIS EXPERT 1700 SBC SXGA: One Model – Four Variants

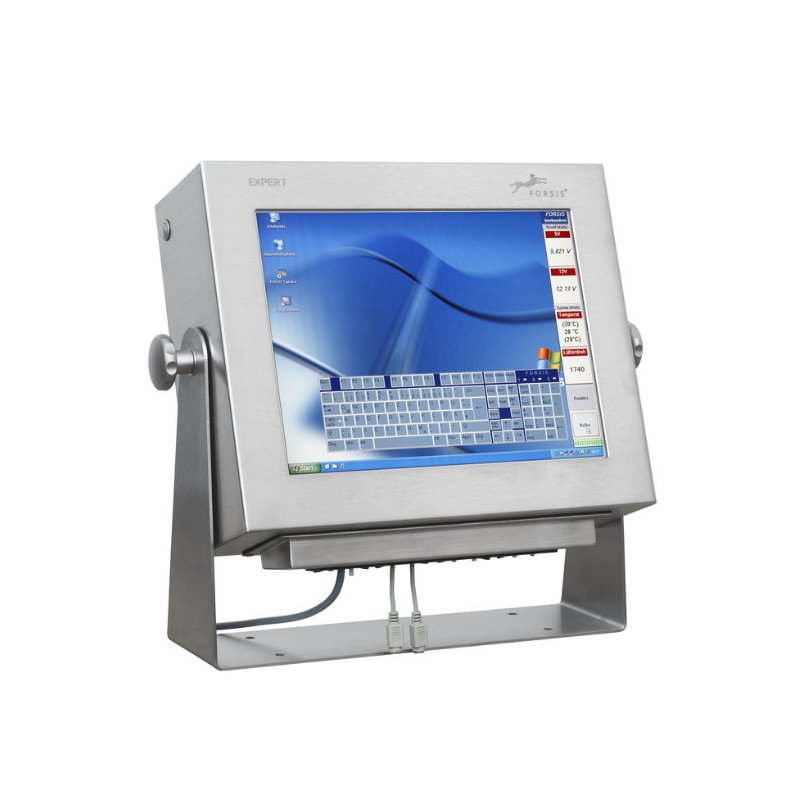

The Forsis Expert SBC 1700 SBC has a 17″ screen. The housing is made of brushed stainless steel (V2A, V4A) and is therefore very stable. The IPCs of the Expert series can be used at temperatures from – 5 °C to 45 °C. The model A2C is optionally available with heating and can even be used in the freezer area down to – 30 °C.

The Industrial PCs of the Expert SBC series offer numerous different interfaces and can therefore be easily integrated. You have the choice between an ATOM or other Intel processors. Windows Embedded 7 or 8 and Windows 7 or 8 are available as operating systems, the A2C model also offers IGEL (eg for Linux). In addition, there are options such as WLAN, Bluetooth, UMTS/LTE and an RFID reader.

Expert 1700 SBC SXGA stationary with 17“ display:

A2C T:
CPU: Intel ATOM D525, 2 x 1,8 GHz, 4 GB RAM, SSD 128 GB
Interfaces: 4 x RS232, 4 x USB2, VGA, 1 x Ethernet 1000 Mbit/s, Maus/KB
Slots: PCI 104, Mini PCIe 1 x full size
OS: Windows Embedded 7, 8, Windows 7, 8, IGEL
Optional: heater, WLAN, Bluetooth, UMTS/LTE, RFID-Reader

i-C T:
CPU: Intel Celeron 1047UE, 2 x 1,4 GHz, 4 GB RAM, SSD 128 GB
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s
Slots: Mini PCIe 1 x full size, 1 x half size
OS: Windows Embedded 7, 8, Windows 7, 8
Optional: WLAN, Bluetooth, UMTS/LTE, RFID-Reader

i3 T:
CPU: Intel Core i3 3217UE, 4 GB RAM, SSD 128 GB
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s
Slots: Mini PCIe 1 x full size, 1 x half size
OS: Windows Embedded 7, 8, Windows 7, 8
Optional: WLAN, Bluetooth, UMTS/LTE, RFID-Reader

i7 T:
CPU: Intel Core i7 3555LE, 4 GB RAM, SSD 128 GB
Interfaces: 2 x RS232, 2 x USB2, 2 x USB3, DP, HDMI, VGA, 2 x Ethernet 1000 Mbit/s
Slots: Mini PCIe 1 x full size, 1 x half size
OS: Windows Embedded 7, 8, Windows 7, 8
Optional: WLAN, Bluetooth, UMTS/LTE, RFID-Reader
