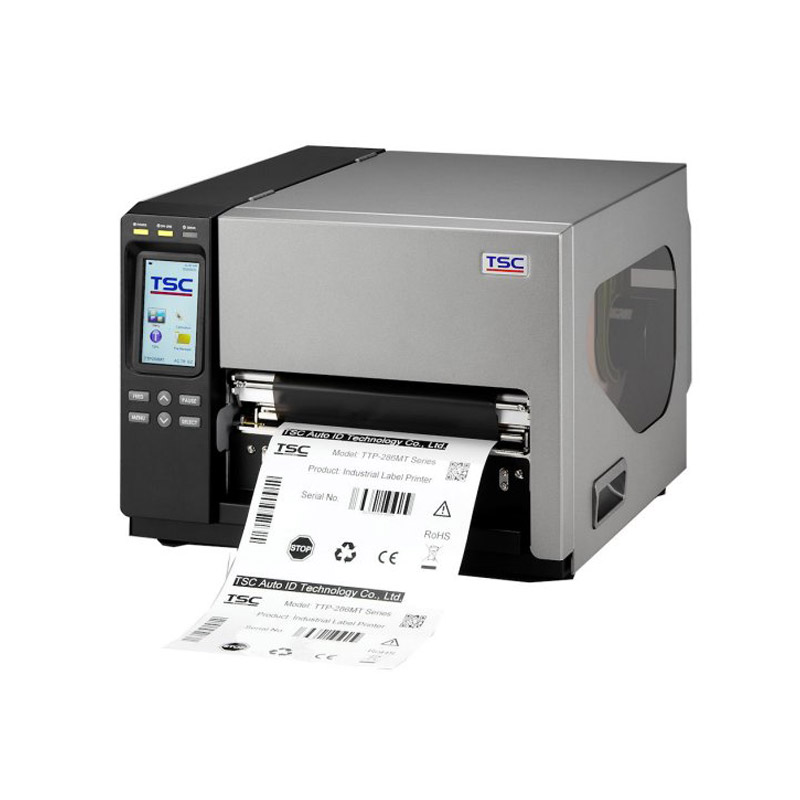

TSC TTP-286MT Series: Wide Format Printer with High Speed Processor
TSC’s TTP-286MT series label printers are wide-format printers with a 4.3-inch color touch display with 6 separate buttons and optimized print speed. The TTP-384MT has a resolution of 300 dpi, which enables deep and excellent printing results even with small graphics or letters in thermal transfer and direct thermal printing. The TTP-286MT model prints with a resolution of 203 dpi.
USB 2.0, internal Ethernet, USB Host, and parallel and serial interfaces are a great help in your day-to-day workflow for printing large-format receipt and marketing labels, warnings, and pallets and barrels.
The integrated 512 MB Flash and 256 MB SDRAM memory ensure smooth operation and storage of all important information. If this is not enough, there is an SD card slot for an expansion of up to 32 GB.
The aluminum die-cast housing makes the printer particularly robust and ideally suited for use in industry.
Technical specification
| Product category | Label Printers |
| Category | Industrial Printers |
| Manufacturer | TSC |
| Resolution | 203 dpi |
| Interface | USB 2.0, USB Host, Serial, 10/100 Ethernet, Wireless 802.11 b/g/n, Bluetooth, Centronics, GPIO |
| Printing Method | thermal transfer/direct thermal |
| Printing Width | 216 mm |
| Maximum Print Speed | 152 mm/s |
| Maximum Print Length | 11430 mm |
| Minimum Print Width | 101,6 mm |
| Maximum Print Width | 241,3 mm |
| Maximum Material Length | continuous |
| Printer Language | TSPL-EZ (EPL, ZPL, ZPL II) |
| RFID-Option | No |
| Display-Option | Yes |
