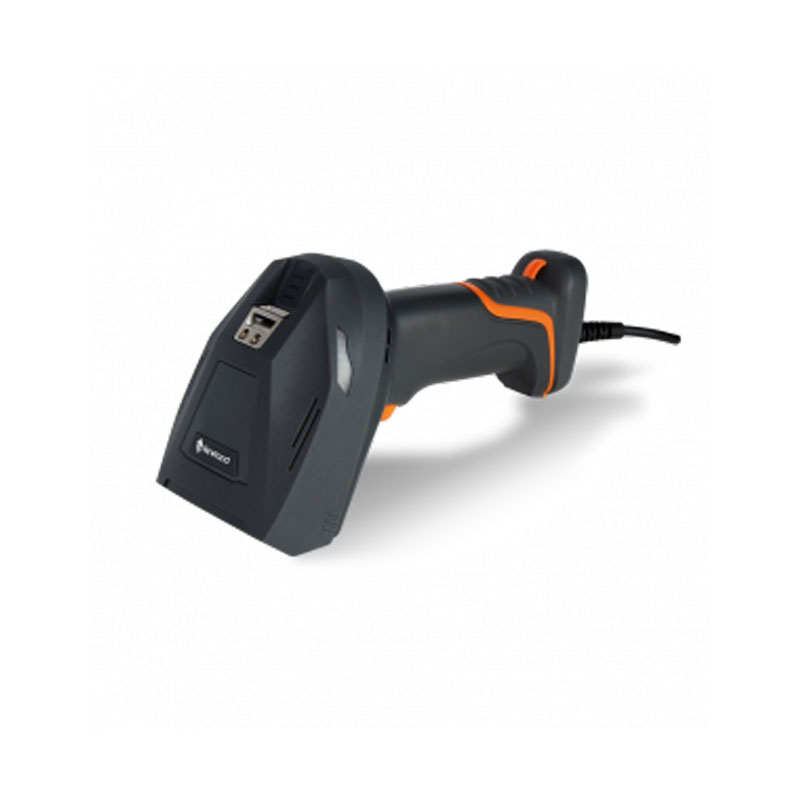

NEWLAND NVH300 ANGLER SERIES: Handheld Scanners for DPM and HD Codes
The corded industrial scanners of the Newland NVH300 series are equipped with a megapixel scan engine. Special illumination enables the capture even of low-contrast barcodes and barcodes on reflective surfaces. A beep, vibration and LED light provide users with clear reading confirmation. The scanners are equipped with an RS-232 serial port and a USB port. Because of their robust construction, the NVH300 series’ barcode readers are suitable for industrial environments.
NVH300 DPM model: Direct part marking has many advantages. However, due to the different surface finishes, common barcode readers may not be able to collect DPM barcode data. The NVH300 DPM handheld scanner is therefore equipped with three different colored light sources. White, direct light as well as diffuse, red, and blue light are projected onto the object from different angles. The scanner automatically finds the optimal illumination and captures even barcodes with low contrast or from reflective materials such as metal and glass.
NVH300 HD model: High-density codes contain large amounts of data in a small area. The powerful megapixel imager of the NVH300 HD barcode scanner is ideal for the acquisition of HD codes. The HD model is equipped with red and white light to enable barcode capture from different surfaces.
The industrial handheld scanners of the NVH300 series provide excellent performance at an affordable price.
Technical specification
| Category | Barcode Scanners |
| Manufacturer | Newland |
| Scan-Technology | 1D, 2D, for DPM or HD codes (depending on model) |
| Scan Modul | SR |
| Colour Options | black orange |
| Sealing | IP65 or IP42 (depending on model) |
| Interfaces | RS-232, USB |
| Operating Temperature | -20 °C to +50 °C |
