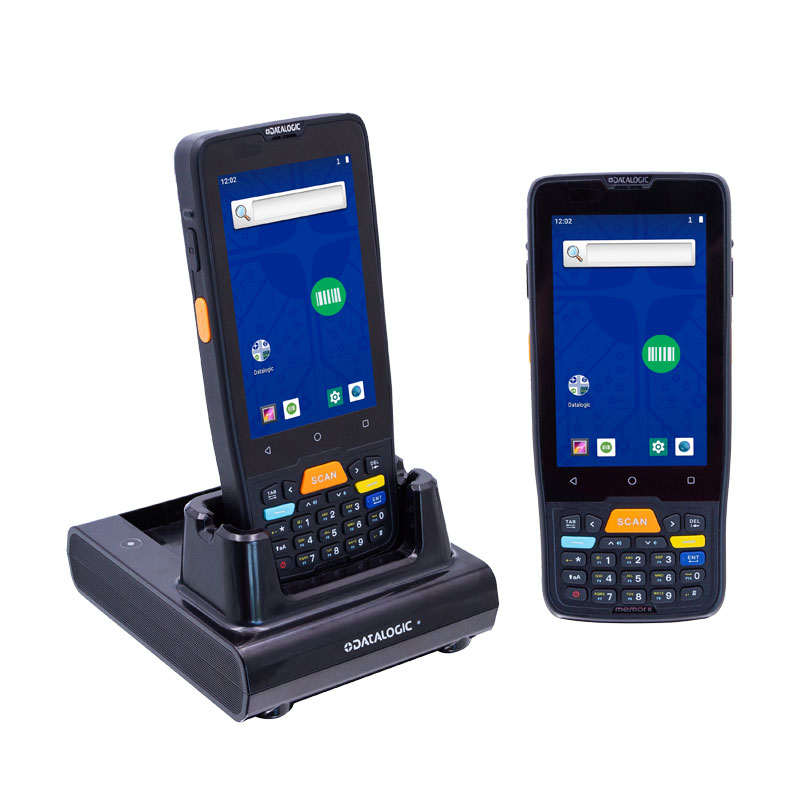

DATALOGIC MEMOR K: Compact Mobile Computer for Flexible Applications
The Android-based handheld terminal Datalogic Memor K comes with a 2 GHz octa-core CPU and provides 3 GB RAM and 32 GB Flash. With a MicroSD card, it is possible to extend memory capacity by up to 64 GB. The convenient mobile computer runs Android 9 and provides useful software solutions. Two programmable keys and one virtual key (SoftSpot) enable direct access to user-defined functions.
Digital data capture enhances the efficiency of working processes. The handheld terminal Memor K by Datalogic is equipped with a 2D imager that reads all major linear and QR codes as well as postal and stacked codes. Two scan buttons at either side of the PDA enable convenient data acquisition. Datalogic’s patented Green Spot technology provides clear good-read feedback. It is possible to capture photos with the 8-megapixel rear camera.

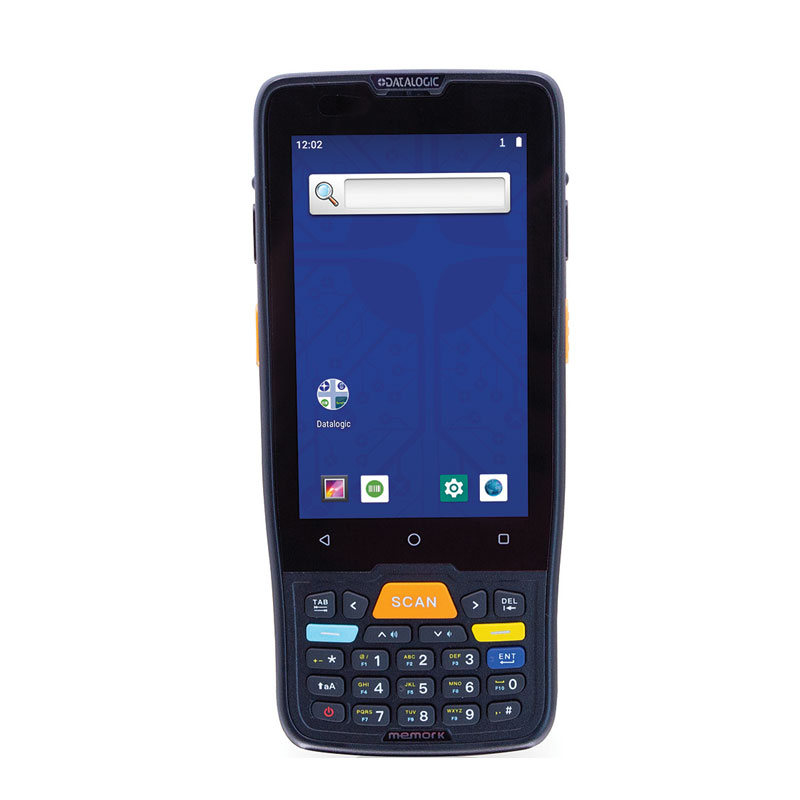

The mobile computer Memor K by Datalogic has a 4-inch multi-touch display, which enables the use of modern business applications. For flexible data input, the Memor K is also equipped with a soft-touch rubber keypad with 24 keys. The display automatically adjusts to ambient light.
Integrated WLAN (IEEE 802.11 a/b/g/n/ac/d/e/i/w), Bluetooth 5.0 (BLE) and NFC enable wireless connectivity with networks and other devices. The mobile terminal Datalogic Memor K is highly durable and can be used in challenging environments. It can withstand drops from a height of 1.2 m and even of 1.5 m with a protective rubber boot. The mobile device complies with protection class IP54. The display is protected by Dragontrail™ hardened glass.
The Datalogic Memor K provides an intelligent computing tool for flexible applications.
Technical specification
Product category | Mobile Computers |
Category | Handheld Terminal |
Manufacturer | Datalogic |
Display Size | 4” |
Communication Interfaces | WLAN, Bluetooth, NFC |
Operating System | Android 9 |
CPU | 2 GHz Octa-Core-CPU |
Memory | 3 GB RAM, 32 GB Flash |
Data Capture | 1D, 2D, postal codes, stacked codes |
Camera | 8MP |
Sealing | IP54 |
Operating Temperature | -20 °C – 50 °C |
Keyboard Options | 24 keys |
Touchpanel | Capacitive multi-touch |
Special Features | 2 configurable function keys, virtual function key (SoftSpot) |
