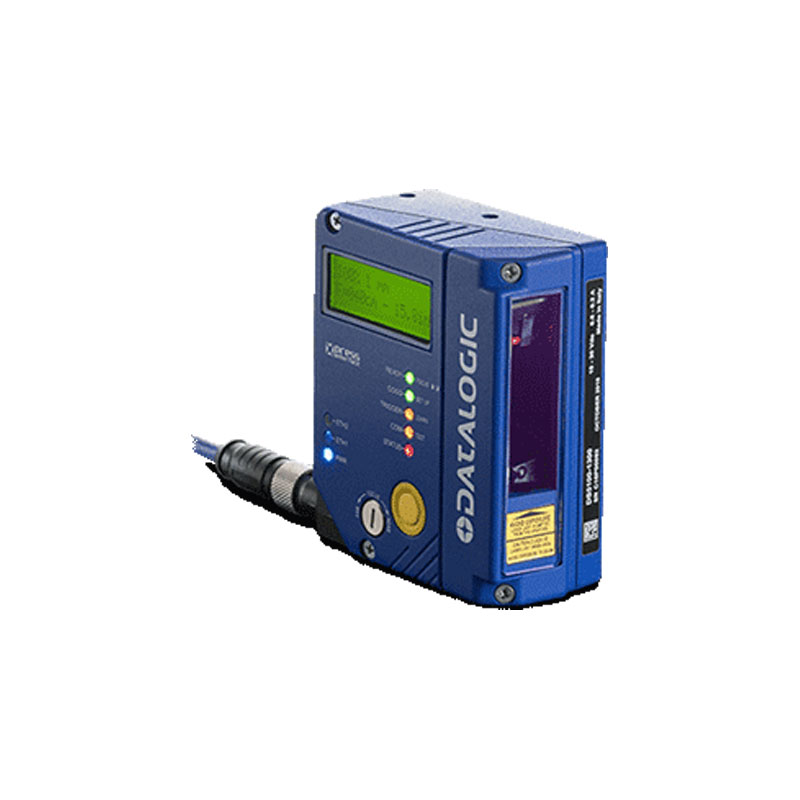

DATALOGIC DS5100 SERIES: Fixed Scanning for Industrial and Logistics Sectors
Enhanced processes, higher throughput, transparency: Fixed scanning systems enable the automation and central control of workflows in production and logistics. The Datalogic DS5100 laser scanners enable comprehensive and affordable Auto-ID solutions, for example for incoming and outgoing goods or for work in progress applications. The scanners provide accurate track and trace data.
Powerful 1D scanners: The DS5100 series’ fixed scanners achieve a high scan rate of up to 800 scans per second. Thanks to Datalogic’s advanced reading technologies, barcodes even in poor condition can be scanned fast, accurately and from nearly any angle. The scanners are therefore ideal for processes in which barcodes move quickly, for example on conveyor belts. Long-range models are equipped with PACKTRACK technology, which ensures error-free assignment of barcodes even when there are only small gaps between fast moving goods on conveyor belts. The DS5100 series consists of mid-range models with a read range between 200 and 1000 mm and long-range models with a read range between 300 and 1400 mm. Models with oscillating mirror are available for a larger field of view. The scanners can capture up to 10 codes in the same reading phase.
Fixed scanners for industrial use: The fixed barcode scanners in the DS5100 series have an aluminum housing and are sealed against the ingress of dust and water in accordance with protection class IP65. Standard models can be used at temperatures between 0 °C and 50 °C. Models for use in deep-freeze or outdoor storage areas are suitable for temperatures from -35 °C to +50 °C. Because of their compact design and rotatable connectors, the devices can be mounted flexibly. Various connection configurations are available (see below). The Windows-based software tool Genius and an X-PRESS interface are available for uncomplicated integration. The devices are equipped with a display.
Datalogic DS5100 Series:
-Linear Ethernet model (Mid-Range/Long-Range)
-Ethernet model with oscillating mirror (Mid-Range/Long-Range)
-Linear PROFINET model (Mid-Range/Long-Range)
-PROFINET model with oscillating mirror (Mid-Range/Long-Range)
-Serial model (Mid-Range/Long-Range)
-Serial model with oscillating mirror (Mid-Range/Long-Range)
-Linear Subzero Ethernet model (Mid-Range)
-Subzero Ethernet model with oscillating mirror (Mid-Range)
Connections:
-Serial models: RS232/RS485main + RS232aux
-Ethernet models: Built-in Ethernet; PNET 1 port: Profinet I/O; SER RS232/RS485main + RS232aux
-PROFINET models: 2 ports: Profinet IO; EBC Network
Readable Codes: Code 2/5, Code39, Code93, Code128, EAN/UPC, GS1 128, Codabar, Pharmacode, Plessey, ISBT128
Accessories: Deflection Mirror, Brackets, Controllers, Connection Boxes
The DS5100 series is backward compatible with the DS4800 series’ accessories.
Technical specification
| Product category | Barcode Scanners |
| Category | Fixed Scanner |
| Manufacturer | Datalogic |
| Scan-Technology | 1D |
| Interfaces | Various configurations |
| Scan Modul | Mid-Range, Long-Range |
| Color Options | blue |
| Sealing | IP65 |
| Operating Temperature | 0 °C to 50 °C or -35 °C to +50 °C (Sub-zero versions) |
| Display | LCD 16 × 2 characters |
| Read Rate | 800 Scans/s |
| Max. Resolution | Up to 0.2 mm (8 mils) |
| Read Range | 200-1000 mm (Mid-Range), 300-1400 mm (Long-Range) |
