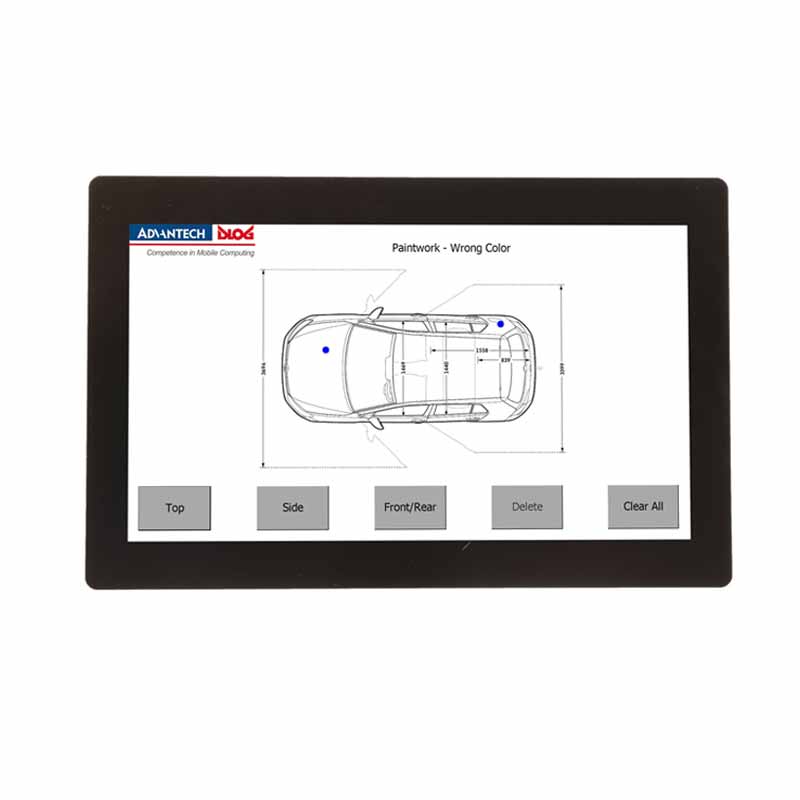

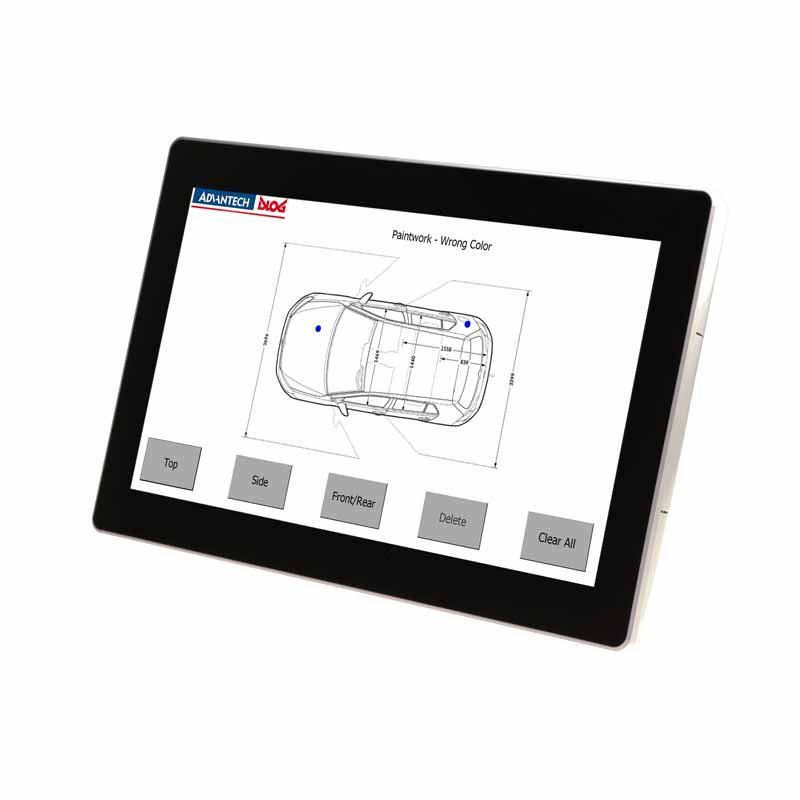

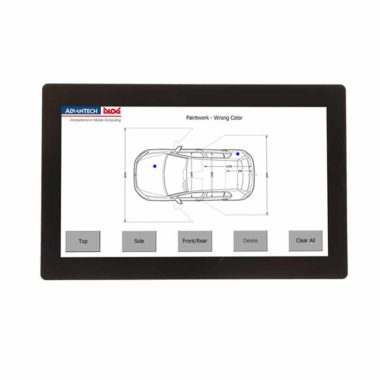

ADVANTECH UTC-300 SERIES: Higher Levels
Step into the world of the Advantech UTC-300 series – the mobile computing solution with powerful performance and maximum flexibility. The Advantech UTC-300 series offers 4 display sizes: 11.6” (UTC-312), 15.6” (UTC-315), 18.5” (UTC-318), 21.5” (UTC-320). Choose either an analog resistive or a projected capacitive touch screen to suit your needs. The UTC-312’s front panel includes 5 user-configurable function keys. The front panel complies with protection class IP65.
Processor and memory options of the Advantech UTC-300 series can be adjusted according to your business needs. The fanless touch computers allows tailor-made solutions with three different types of Intel processors and memory options of up to 1 TB SSD. Android, Windows or Linux operating systems are supported, allowing a huge spectrum of choices.
A wide variety of interface options make the portable computers of the Advantech UTC-300 family highly adaptable. Depending on model, WLAN is either integrated or can be added via WiFi module (802.11 a/b/g/n). All versions come with VESA mounting options and a detachable frame (except UTC-312) enables panel mounting to suit industrial applications.
Models of the Advantech UTC-300 series:
UTC-312B: Intel Atom D510, 1.6 GHz, analog resistive touch screen, LAN, WLAN, 5 programmable hotkeys, Power over Ethernet (PoE) Ports: 3 x USB, serial
UTC-312D: Intel Bay Trail J1900, 2.0 GHz quad-core, projected capacitive touch screen (analog resistive on request), LAN, WLAN, Bluetooth 4.0 (optional), 5 programmable hotkeys, Power over Ethernet (PoE) Ports: 2 x USB 2.0, 1 x USB 3.0, serial
UTC-315/318/320D: Intel Bay Trail J1900, 2.0 GHz quad-core, various memory options, analog resistive or projected capacitive touch screen, black or white Ports: 1 x RS-232, 1 x RS-232/422/485, 5 x USB 2.0, 1 x USB 3.0, 2 x RJ-45, 1 x HDMI
UTC-315/318/320E: Intel Haswell Core i5-4300U, 1.9 GHz dual-core, various memory options, analog resistive of projected capacitive touch screen, black or white Ports: 1 x RS-232 (opt. CSAFE), 1 x RS-232/422/485, 2 x USB 2.0, 4 x USB 3.0, 2 x RJ-45, 1 x HDMI, 1 x RJ-11
UTC-315/318/320F: Intel Skylake Core i5-6300U, 2.4 GHz dual-core, various memory options, analog resistive or projected capacitive touch screen, black or white Ports: 1 x RS-232, 1 x RS-232/422/485, 2 x USB 2.0, 4 x USB 3.0, 2 x RJ-45, 1 x HDMI, 1 x RJ-11
Optional Peripherals: 5 MP camera, magnet strip reader, RFID reader, smart card reader, 1D or 2D barcode scanner
Technical specification
| Product category | Fixed Computers |
| Category | Industrial Computers |
| Manufacturer | Advantech |
| Display Size | 11,6"|15,6"|18,5"|21,5" |
| Communication Interface | USB, WLAN, Ethernet, Bluetooth, Serial |
| Operating System | Windows, Linux or Android |
| CPU | Intel Bay Trail Celeron J1900, Intel Haswell i5-4300U, Intel Skylake Core i5-6300U |
| Memory | to 1 TB |
| Data Capture | optional 1D / 2D |
| Sealing | IP65 |
| Operating Temperature | 0°C to 40°C |
| Keyboard | 5 programmable function keys |
| Touchpanel | analog resistive or projected capacitive touch screen |
| Special Features | Optional Peripherals: 5 MP camera, magnet strip reader, RFID reader, smart card reader, 1D or 2D barcode scanner |
