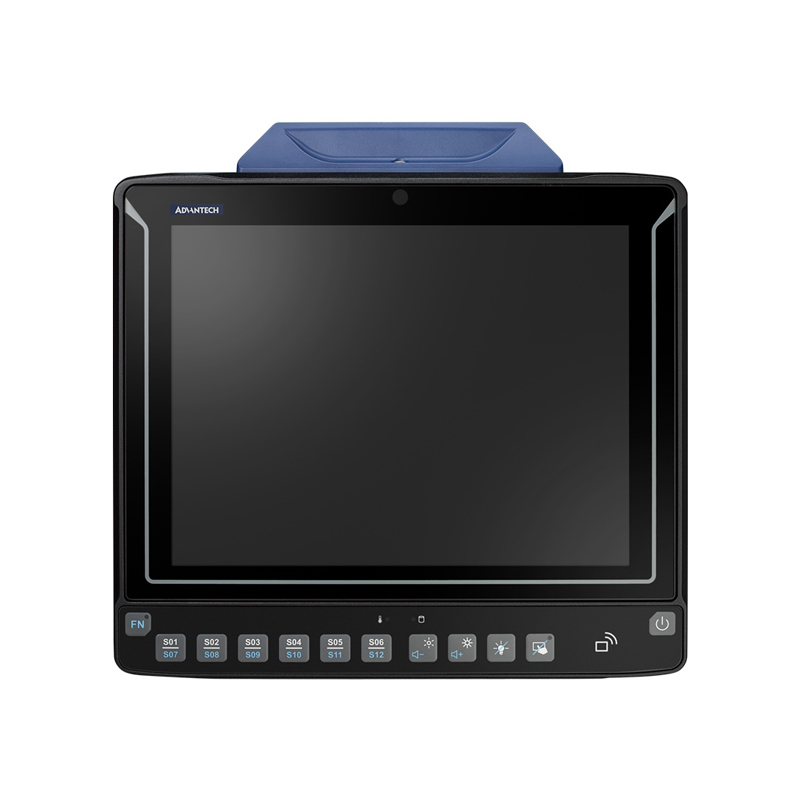

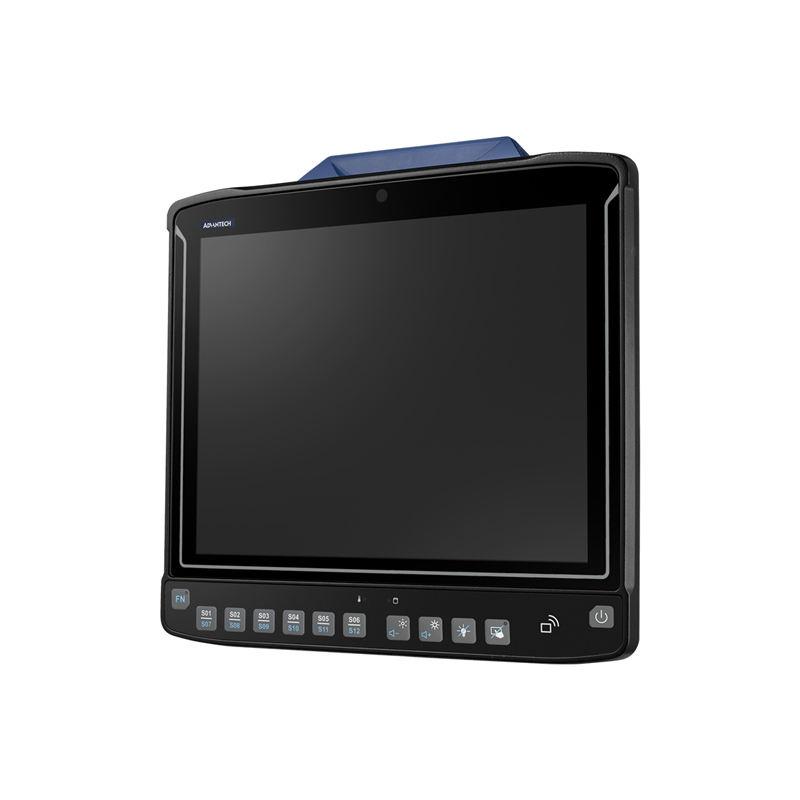

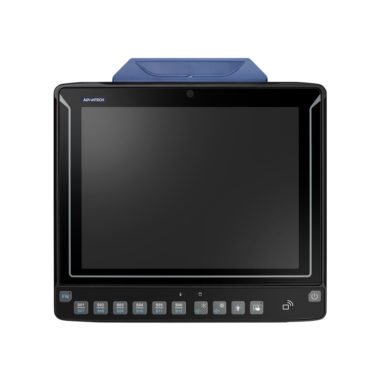

ADVANTECH-DLOG DLT-V73 SERIES: Ultra-rugged Computers for Integration in Industrial Vehicles
Ready for the challenges of harsh industrial environments: The Advantech-DLoG DLT-V73 vehicle terminal series is equipped with either a 10.4-inch or a 12.1-inch touchscreen. The screen is rated IK08 and resistant to scratches and impacts. Due to its high brightness of 500 or 600 nits (depending on model), the display is conveniently readable, indoors and outdoors. The aluminum casing of the terminals is sealed against dust and water according to protection class IP66.
Intel x86 architecture: Choose between the Intel Core i5-1145GRE quad-core CPU and the Intel Celeron 6305E dual-core CPU. If required, the TPU Coral M.2 Accelerator can be added. The DLT-V73 mobile computers are available with either 8 GB or 16 GB RAM and 128 GB or 256 GB storage. Windows and Linux operating systems are supported.
Software solutions: Advantech’s DeviceOn/iService MDM software is integrated. However, the DLT-V73 series is also compatible with the NAVIS N4 Terminal Operating System (TOS) and software solutions from SOTI.
Latest WLAN standard: The DLT-V73 mobile computers are equipped with Wi-Fi 6E and enable use of the 6 GHz band. The new standard ensures extremely fast and highly reliable network connectivity. The VMTs are also equipped with Bluetooth 5.3 and NFC. As option, they are available with 4G and GPS.
Interfaces and options: The vehicle-mounted terminals of the DLT-V73 series are equipped with multiple interfaces as standard: a serial port, USB ports and an RSMA port for an external WLAN antenna. In order to customize the vehicle mounted terminal to application requirements, there are additional ports and add-on modules available as option. The terminals are available with an uninterruptible power supply (UPS) to bridge about 20 minutes.
The three models of the DLT-V73 series:
DLT-V7310: 10.4-inch capacitive touchscreen (will also be available with resistive touchscreen), up to 500 nits brightness, 12 control keys
DLT-V7312: 12.1-inch capacitive touchscreen, up to 600 nits brightness, 12 control keys

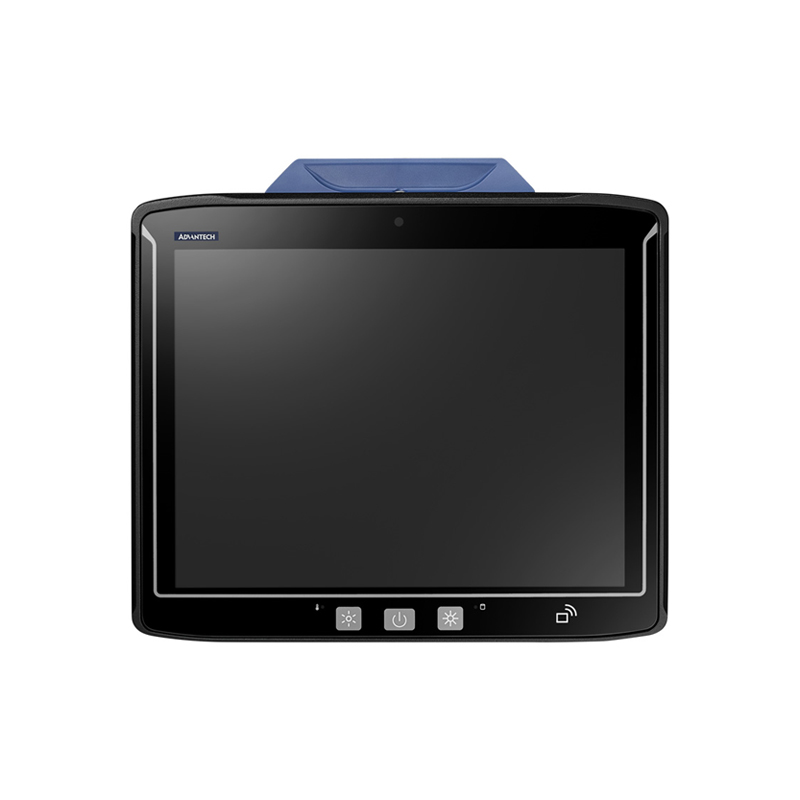

DLT-V7312P+: 12.1-inch capacitive touchscreen, up to 600 nits brightness, 3 control keys
Optional and AddOn interfaces: SMA for external WWAN antenna, SMA for external GPS antenna, CAN FD, USB to serial COM RS-232/RS-485/RS-422, switchable), USB A, LAN (10/100/100 Mbit), Digital I/O
Technical specification
| Product category | Mobile Computers |
| Category | Vehicle Mounted Computers |
| Manufacturer | Advantech |
| Display Size | 10,4"|12,1" |
| Communication Interfaces | Wi-Fi 6E, Bluetooth 5.3, 4G (opt.), GPS (opt.), NFC |
| Operating System | Windows 10 IoT Enterprise LTSC (upradeable to Windows 11 IoT Enterprise, Linux possible) |
| CPU | Intel core i5-1145GRE or Intel Celeron 6305E |
| Memory | 8/16 GB RAM, 128/256 GB CFast-Speicher |
| Sealing | IP66 |
| Operating Temperature | -30 °C to +50 °C |
| Humidity | 10-90 % non-condensing |
| Keyboard Options | On-screen keyboard and keys |
| Touchpanel | Capacitive touchscreen or resistive touchscreen |
| Special Features | Wi-Fi 6E, AddOn interface options, 2 CPU options, UPS option |
